Only visible in the world window, the ground is a virtual chequered grid providing a visual reference for organizing objects in space.

Voxels located above the ground are rendered, while those located under are not.

Glossary 0.99.5a world window-ground

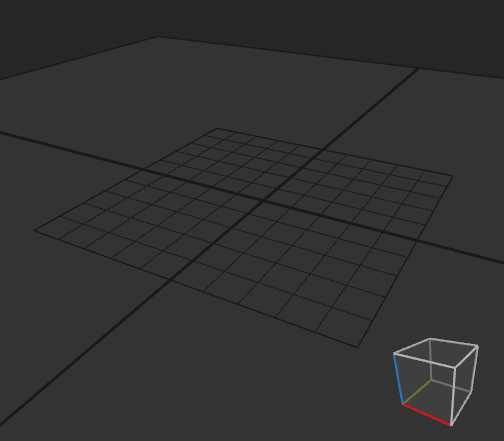

The virtual ground in World editor


World size

MagicaVoxel world limit is -1000 / +1000vx relative to the ground center, this means that:

  • the editable world is 2000vx wide on each axis
  • the renderable world is 2000x2000x1000vx wide (all voxels above the ground)

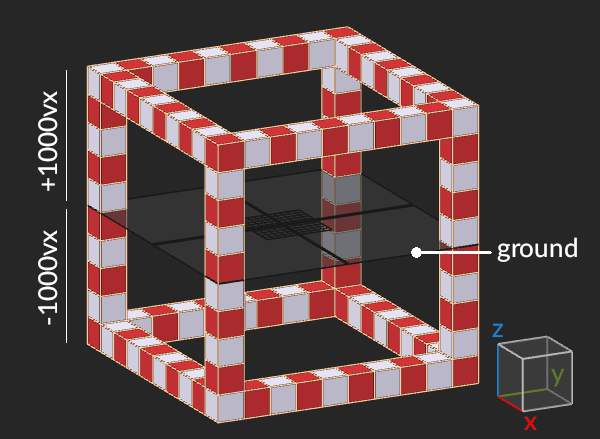

0.99.5a-world size
Red and white object are 200^3vx wide, and are located along the MagicaVoxel World limits. Only the objects above the ground will be rendrered.

Depending on your hardware, there's also a limited number of solid voxels that can be rendered. See geometry render settings and Config.txt render buffers.
